Description

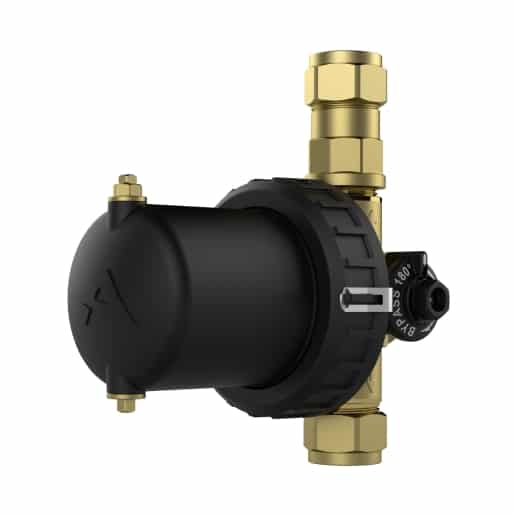

MagnaClean Atom® protects the central heating system against the damaging effects of black iron oxide sludge. The super-compact design provides an opportunity to fit a filter into previously inaccessible spaces.
Please always refer to the manufacturer’s instructions for the correct application. All parts should be fitted by a qualified plumber.
We know you’re busy and need to get repair jobs done quickly and efficiently. Our experts are waiting to help you with your plumbing, heating, or bathroom project. UK Plumbing is the UK’s favourite supplier of plumbing and heating materials. We strongly value trust, reliability and always deliver excellent service for a fair price.
Product feature:
Canister
• Material: Glass reinforced polymer
• Fluid capacity: 230ml
• Inlet diameter: 22mm compression
• Outlet diameter: 22mm compression
• Thread: Pressure thread
• Flow configuration: One direction only
• Valve to canister seal: EPDM
• Magnet length: 82.5mm
• Magnet diameter: 20mm
Bleed valve
• Body material: Brass
• Screw: Brass
• Thread interface: M6
Drain port
• Drain plug material: Brass
• Drain plug thread: M8 (non-standard)
• Seals: EPDM
Servicing Clearance
• Air vent: 20mm
• Drain plug: 30mm
