Description

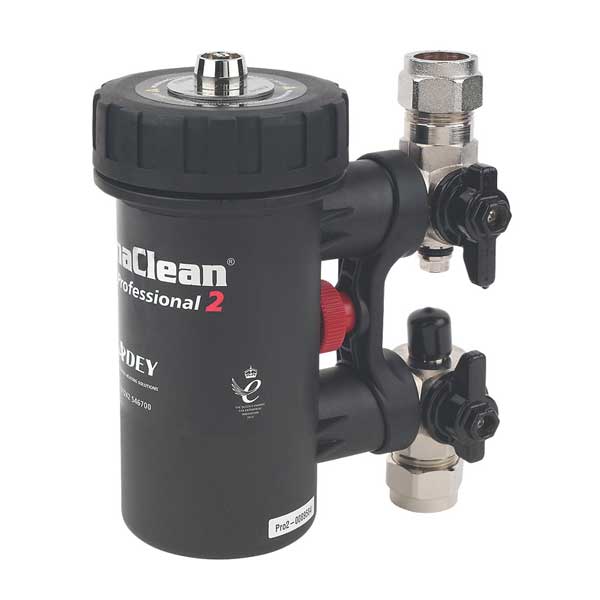

MagnaClean Professional2® has been expertly designed to maximise the capture of magnetite. Engineered to trap virtually all circulating debris actively, it never stops delivering the very best protection. No wonder it’s the UK’s first choice filter.
Please always refer to the manufacturer's instructions for the correct application. All parts should be fitted by a qualified plumber.
We know you’re busy and need to get repair jobs done quickly and efficiently. Our experts are waiting to help you with your plumbing, heating, or bathroom project. UK Plumbing is the UK's favourite supplier of plumbing and heating materials. We strongly value trust, reliability and always deliver excellent service for a fair price.
Product feature:
Canister and lid
• Material: Glass reinforced nylon
• Fluid capacity: 550 ml
• Inlet diameter: 22 mm at the valve
• Outlet diameter: 22 mm at the valve
• Thread: Pressure thread
• Flow configuration: Bi-directional
• Main lid seal: EPDM
• Valve to canister: EPDM
Magnet
• Housing: Stainless steel
• Length: 150 mm
• Diameter: 19 mm
Bleed valve
• Body material: Nickel plated brass
• Screw: Nickel plated brass
• Thread interface: M6
• Seals: EPDM
Drain port
• Drain plug material: Nickel plated brass
• Drain plug thread: M8
• Seals: EPDM
Triple seal valves
• Body material: Nickel plated brass
• Seals material: Long-life PTFE ball seals
• O ring material: EPDM 70 seals x3
• Valve inlet/outlet: 22 mm
Servicing Clearance
• Air vent (top): 50 mm
• Drain Plug (bottom): 50 mm
